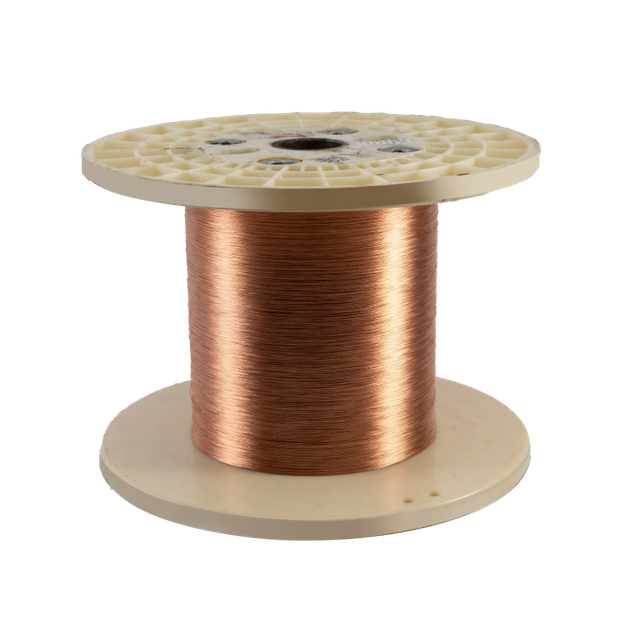

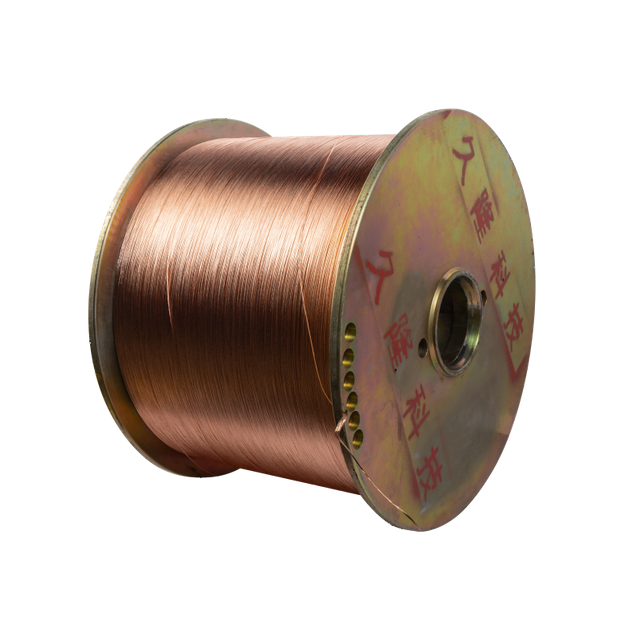

What is Bare Copper Wire ?

Bare copper wire refers to electrical wire that is made of copper and lacks any external insulation or coating. This type of wire is often used in situations where the wire will be housed within a conduit, installed in a way that doesn't require insulation, or when it will be coated with another material later in the manufacturing process.

Advantages of Bare Copper Wire

1. High Electrical Conductivity: Copper is one of the best conductors of electricity, offering low electrical resistance and efficient power transmission.

2. Thermal Conductivity: Copper has excellent thermal conductivity, making it useful in applications where heat dissipation is important.

3. Cost-Effective: Generally, bare copper wire is less expensive than insulated wire because it lacks the additional materials and manufacturing processes required for insulation.

4. Flexibility: Bare copper wire can be easily bent and shaped, making it versatile for various applications, including crafting and jewelry making.

5. Durability: Copper is resistant to corrosion and wear, ensuring a longer lifespan for the wire in many environments.

6. Recyclability: Copper is highly recyclable, making it an environmentally friendly choice.

7. No Insulation Degradation: Since it lacks insulation, there's no risk of insulation degradation over time, which can occur in some types of insulated wires.

Disadvantages of Bare Copper Wire

1. Safety Risks: The lack of insulation makes bare copper wire more hazardous if not properly handled or installed. It can cause short circuits, shocks, or even fires if it comes into contact with other conductors or live parts.

2. Limited Applications: Bare copper wire cannot be used in situations where insulation is required to prevent electrical interference or ensure safety.

3. Exposure to Corrosion: While copper itself is relatively resistant to corrosion, it can still corrode over time when exposed to certain chemicals or environments, potentially affecting its conductivity.

4. Installation Challenges: Proper installation often requires additional measures such as conduits or protective coverings, which can complicate the installation process compared to pre-insulated wire.

5. Environmental Exposure: Bare copper wire is susceptible to environmental factors like moisture and dirt, which can affect its performance and longevity unless adequately protected.

6. Handling Difficulty: Without insulation, handling bare copper wire requires extra caution to avoid accidental contact with other conductors or live electrical components.

In summary, while bare copper wire offers significant advantages in terms of conductivity, cost, and flexibility, it also presents notable safety and application limitations that must be carefully managed.

Application:

1. Power Transmission and Distribution:

• Overhead Power Lines: Due to its excellent conductivity and durability, bare copper wire is widely used in overhead power transmission lines.

• Distribution Systems: In power distribution systems, bare copper wire is often used to connect transformers, distribution panels, and other equipment.

2. Electrical Grounding:

• Grounding Wires: Due to its excellent conductivity, bare copper wire is often used as grounding wires in electrical systems to ensure the safe operation of equipment.

3. Electromagnetic Device Manufacturing:

• Motors and Transformers: In the manufacturing of motors and transformers, bare copper wire is used to make coils for the conversion between electrical energy and magnetic energy.

• Electromagnets: Bare copper wire is also used to make coils for electromagnets, such as relays, solenoid valves, etc.

4. Telecommunications Industry:

• Coaxial Cables: Although coaxial cables usually have an insulating layer on the outside, their internal conductors often use bare copper wire to ensure stable and efficient signal transmission.

5. Construction and Industrial Applications:

• Busway Systems: In large buildings or industrial facilities, the conductors inside busway systems typically use bare copper wire to carry large currents.

• Jumper Cables: In electrical installations, bare copper wire is often used as temporary connections or jumper cables to facilitate construction and maintenance.

6. Special Applications:

• Thermal Management: Due to copper's good thermal conductivity, bare copper wire is sometimes used in applications requiring efficient thermal management, such as connections within heat sinks.
