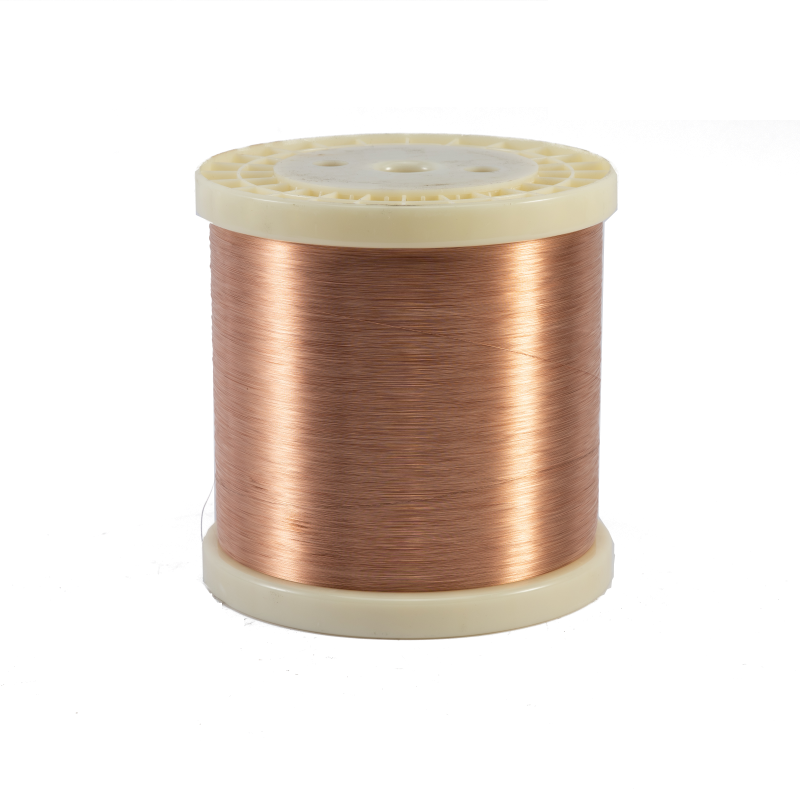

WHAT IS BARE COPPER WIRE ?
Bare copper wire is essentially copper without any coating or plating. It is highly prized for its high conductivity and flexibility, making it ideal for a variety of electrical applications. Bare copper is commonly used in residential
building wiring, grounding wires, and in electrical devices where wires do not face excessive exposure to harsh environments. Its excellent electrical conductivity makes it a top choice for transmitting power with minimal resistance.
Industrial
New Energy
Data Transformation
Aerospace
Automotive
Smart Home
Medical
Logistics
Name | Bare Single Copper Wire | ||
Model | JLBCW-SG | ||
Specification (Single Wire Diameter) | 0.05--2.6 | ||
Raw Materials and Product standards | GB/T 3593-2024 | ||
Electrical Resistivity | Not Larger than0.017241Ω/mm/m²20℃ | ||
Dimensional Deviation | Standard d(mm) | 0.05≦d<0.10 | |
Tolerance (mm) | 0.003 | ||
Mechanical Property | Standard Diameter d(mm) | 0.05≦d<0.10 | |
0.10≦d<0.23 | |||
Tensile Strength n/m m² Not less than | … | ||
196 | |||
Elongation(%) | 10 | ||
15 | |||
Plating | 1. The coating of tinned copper wire should be continuous and firm, and there should be no black spots and oxidation on the surface after the experiment. | ||
2. The coating surface of the tinned copper wire is smooth and continuous, with no tin particles, burrs, and other defects. | |||
Inspection Process | Product testing process; Incoming inspection → process inspection → finished product inspection, all products are inspected | ||
Only products that pass the test can be shipped. Each batch of shipped products is accompanied by a quality inspection report. | |||
Inspection Item | Item | 1. Coating thickness 2. Single wire diameter tolerance 3. Appearance 4. Resistance 5. Elongation | |
Test Method | 1. Coating thickness gauge 2. Micron micrometer 3. Visual inspection 4. Electric bridge 5. Elongation tester |
JlongWire Bare Single Copper Wire Datasheet | |||||||
Model | America Wire gauge | Standard | Cross Section | Common specifications of take-up reels and maximum loading capacity (kg) | |||
5" | 8" | 9" | 250" | ||||
JLBCW-SG | 44 | 0.05 | 0.002 | 5 | / | ||
JLBCW-SG | 40 | 0.08 | 0.005 | 5 | 10 | / | |
JLBCW-SG | 38 | 0.1 | 0.0079 | 5 | 10 | ||
JLBCW-SG | 37 | 0.12 | 0.0113 | 5 | 10 | 15 | 23 |
JLBCW-SG | 36 | 0.127 | 0.0127 | 10 | 15 | 23 | |
JLBCW-SG | 34 | 0.16 | 0.0201 | 10 | 15 | 23 | |
JLBCW-SG | 33 | 0.18 | 0.0254 | 10 | 15 | 23 | |
JLBCW-SG | 32 | 0.2 | 0.0314 | 10 | 15 | 23 | |
JLBCW-SG | 31 | 0.25 | 0.0491 | 10 | 15 | 23 | |
JLBCW-SG | 30 | 0.254 | 0.0507 | 10 | 15 | 23 | |
JLBCW-SG | 29 | 0.3 | 0.0707 | 10 | 15 | 23 | |
JLBCW-SG | 28 | 0.32 | 0.0804 | / | 10 | 15 | 23 |
JLBCW-SG | 27 | 0.361 | 0.1024 | / | 10 | 15 | 23 |
JLBCW-SG | 26 | 0.404 | 0.1282 | / | 10 | 15 | 23 |
JLBCW-SG | 26 | 0.41 | 0.132 | / | 10 | 15 | 23 |
JLBCW-SG | / | 10 | 15 | 23 | |||
JLBCW-SG | / | 10 | 15 | 23 | |||
JLBCW-SG | / | 10 | 15 | 23 | |||
JLBCW-SG | / | 10 | 15 | 23 | |||
JLBCW-SG | 15 | 1.67 | 2.1904 | / | / | / | / |
JLBCW-SG | / | 0.8 | / | / | / | / | / |
Remark:It can be customized according to customer requirements
